3D thematic maps – Points

The aim of the experiment was to compare two methods of visualization of 3D point symbols – points displayed on the 2D map and on the virtual globe. The experiment contained eight pairs of maps of Europe containing point symbol in each country. The point symbols were randomly assigned to three categories – small, medium and large. The task of 40 respondents was to select all symbols from the medium category. During the experiment, the hypothesis that distinction of point sizes will be more difficult on the virtual globe was tested.

Methods

Procedure

Eye-tracking experiment contained a set of eight pairs of stimuli – visualization of 3D point symbols on the map and in a virtual globe. In both cases, a map of Europe was presented to the respondents. This map contained 3D point features representing the values of a quantitative characteristic of the fictitious phenomenon. Point symbols were divided into three size categories. The task of respondents was to determine which of the symbols lies in a second (medium) size category. The aim of the experiment was to test the following hypotheses:

• H1: A higher number of correct answers will be recorded in the perspective map
• H2: Determination of the proper size category of point symbols will be more difficult in the virtual globe

Stimuli

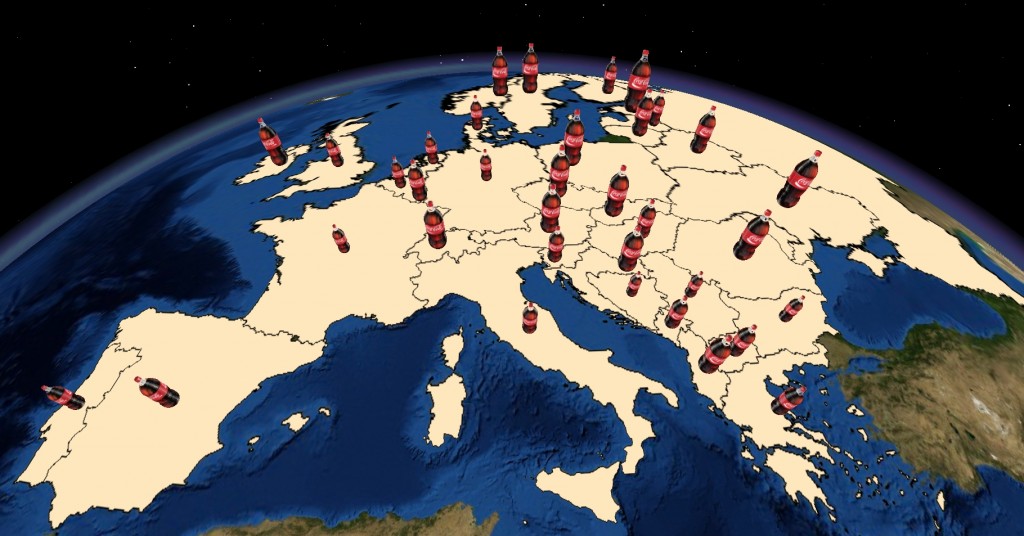

Stimuli were created in Esri ArcScene and ArcGlobe. 3D point symbols prepared in Trimble SketchUp were placed in the centroids of European countries. The categorization was carried out using a random number generator. The difference in the symbols size among different categories in both cases (ArcScene ArcGlobe) was ten points. The field of view in both applications was set to 55 degrees.

 Participants

Total of 40 respondents were involved in the experiment. Twenty of them were students of cartography, and the rest were respondents who are not studying cartography. After the end of the experiment, respondents were asked which of the alternatives was more suitable for the task solution. Even during the experiment, it was evident from respondents’ comments that solving a task on stimuli with virtual globe was much more difficult than on the map.

Apparatus

For the study, remote eye-tracking device SMI RED 250, developed by SensoMotoric Instruments, was used. This device was operating at frequency of 250 Hz.

 Analyses

For the analysis of DualMap experiment, the “Dwell Time” metric was chosen. It was used for comparison of attention distributed between targets. Within the stimuli only two AOI representing 2D and 3D map were marked. The statistical analysis was then used to examine whether there is a difference between how users viewed part of the stimulus with 3D Map and 2D map. On the significance level α = 0.05 no statistically significant difference for any of the studied stimulus was found.

In the next step, it was tested, if the value of Dwell Time is not influenced by order of the maps in the stimuli. Generally speaking, the image on the left side should be preferred more, because participants are used to read text from the left side. Differences between dwell time values based on the order of maps in the stimuli were also tested with use of Wilcoxon rank sum test. There was found a statistically significant difference in the half of observations. Order of maps in the stimuli influenced the value of Dwell time in stimuli 4, 6 and 8.

The second step of the analysis was the evaluation of the accuracy of answers for each question separately. In this analysis, also the situation when the respondent did not mark a point symbol that he or she should mark was taken into account. Designation of the symbol from a medium-size category was considered as the correct answer. The wrong answer means the failure to identify AOI or to mark a symbol from the first or third category. For all questions, the correctness of answers was higher in the 2D map. Data were tested using Pearson’s chi-squared test and statistically significant differences were found for all pairs of stimuli.

The correctness of answers recorded during the experiment. Designation of a point symbol from the medium-size category was considered as the correct answer. The wrong answer means the failure to identify AOI or to mark a symbol from the first or third category.

During testing of eye-tracking metrics for each pair of stimuli separately, statistically significant differences were found for metrics Trial Duration, Count Fixation, and Scanpath Length. For metrics Trial Duration and Fixation Count, statistically significant differences were found for all pairs of stimuli. In the case of Scanpath Length metric, statistically significant differences were found only in pairs Q2, Q6 and Q8.

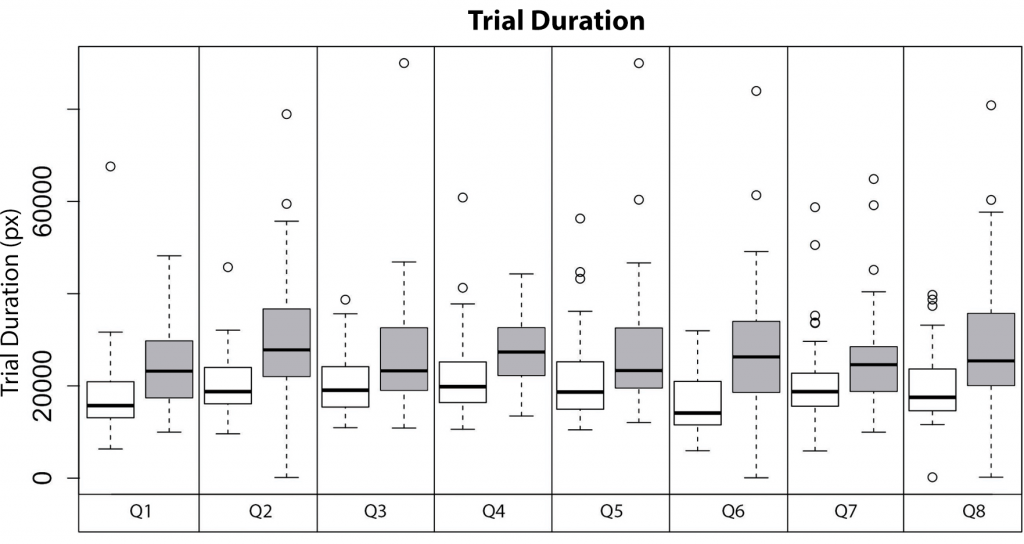

Higher values for all metrics were recorded in the case of stimuli containing point symbols shown in the virtual globe. An example is a boxplot in Figure 6 showing the values Trial Duration metric.

Conclusion

It can be stated that recognition of the size of the point symbol has been was slower in the case of 3D stimuli (virtual globe), and respondents made more mistakes than in the perspective map.

Outputs

Popelka, S., Dolezalova, J. (2016) Differences between 2D map and virtual globe containing point symbols – an eye-tracking study, Geoconference on Informatics, Geoinformatics and Remote Sensing, Vol III, pp. 175-182, doi:10.5593/sgem2016B23
